Commercial Soffit Insulation
Specifier-grade closed-cell spray foam to commercial soffits — offices, retail, schools, hospitals. Nexseal LE declared to BS EN 14315-1, with DC315 intumescent topcoat. Euroclass B-s2-d0 fire rated, U-value targeted to TGD L.
Why Commercial Soffits Need Specifier-Grade Insulation

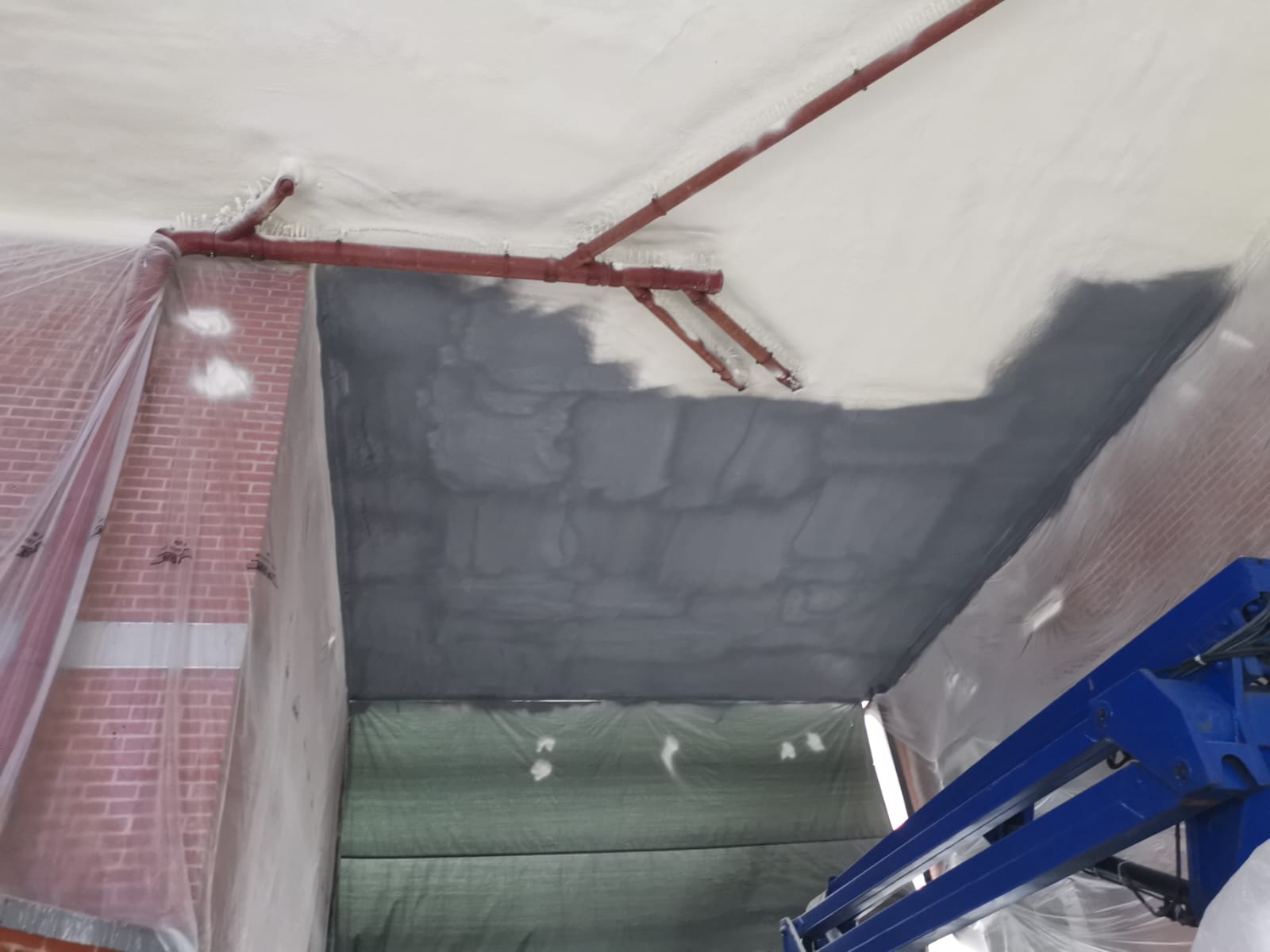

Before: under-insulated soffitThe specifier brief
Commercial soffits — under offices, retail floors, schools, hospitals — need to deliver three specifier requirements simultaneously: a target U-value for TGD L, Euroclass B-s2-d0 reaction-to-fire for TGD B, and full condensation control for occupant comfort. Most existing commercial soffits hit none of these.
- Older buildings: U-value 1.5-2.5 W/m²K, far above current TGD L targets
- No intumescent finish = no Euroclass fire rating under occupied floors
- Condensation drips during heating season — H&S risk in public spaces
- PIR board can't bridge column heads + complex services without fixings
4 Specifier Outcomes From a Single System
The Closed-Cell Spray Foam System
Spraying: Enverge Nexseal LEEnverge Nexseal LE + DC315 intumescent topcoat
Specified for commercial schemes: Enverge Nexseal LE closed-cell spray polyurethane foam, declared to BS EN 14315-1, sprayed direct to the slab underside, finished with DC315 intumescent topcoat. Typical 50 mm build-up bonds chemically to concrete, steel deck or composite slab — no primer, no fixings.
The DC315 topcoat over cured foam achieves Euroclass B-s2-d0 to BS EN 13501-1, fully compliant with commercial fire requirements (TGD B in ROI, Technical Booklet E in NI) for occupied buildings.
- Nexseal LE declared performance to BS EN 14315-1 (independent test basis)
- Sprays around columns, beams, downstand services, sprinkler runs
- Zero fixings = zero thermal bridges
- Vapour-barrier + insulation in one layer
- Clean white DC315 finish — paintable for occupied public spaces
Commercial Buildings We Insulate
Live commercial schemes across Ireland and Northern Ireland — phased install around tenants and operating hours.
Office buildings
Single-let and multi-tenant offices. Plant-room, basement, undercroft and inter-floor soffit insulation. Phased works around tenant hours.

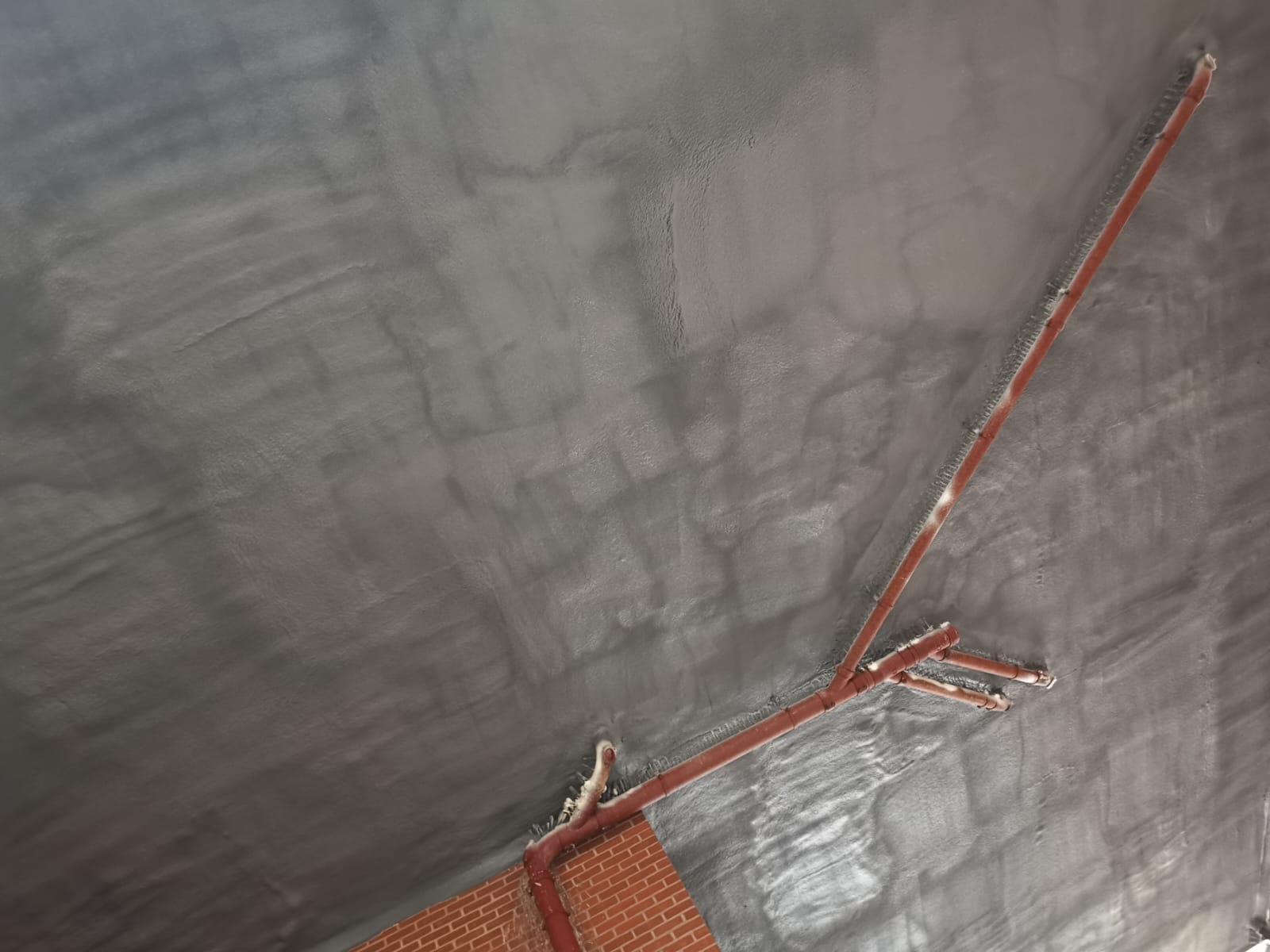

Retail & shopping centre
Retail unit ceilings, mall-level soffits and undercroft service spaces. Works scheduled around trading hours and tenant move-ins.
Hospitals
Ward, theatre, plant-room and corridor soffits. Strict infection-control RAMS, full BS EN 14315-1 declaration + DC315 cert pack.
Schools & further education
School corridor, sports hall, plant-room and undercroft soffits. Works phased to holiday closures — handover ready for term-start.

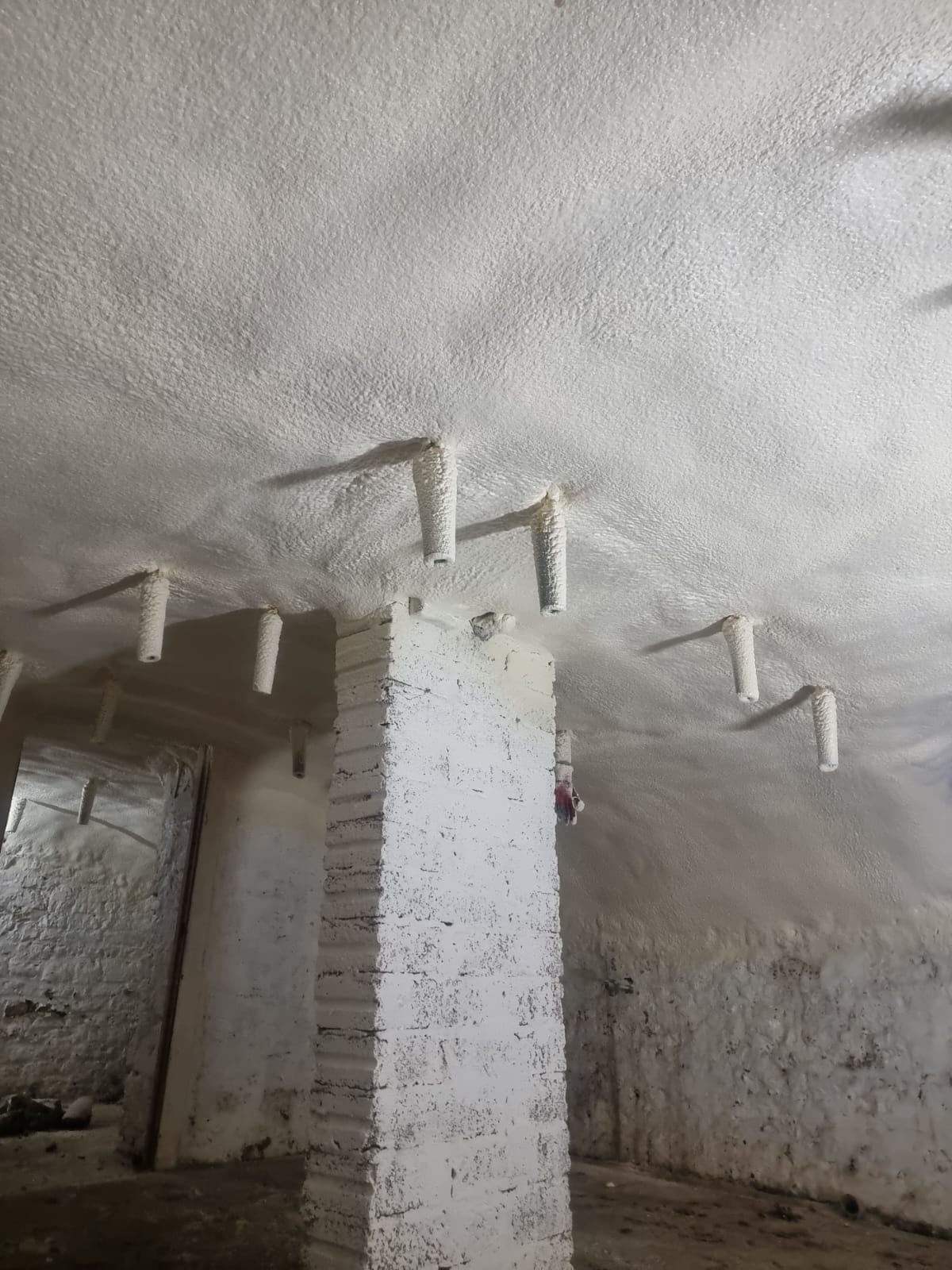

Council & public sector
Civic centres, libraries, community buildings. Standard framework procurement with full RAMS, chemical agents risk assessment and public liability cover.
Mixed-use podium decks
Commercial-over-undercroft, residential-over-retail and mixed-use podium decks. Critical TGD L + TGD B compliance area on schemes.

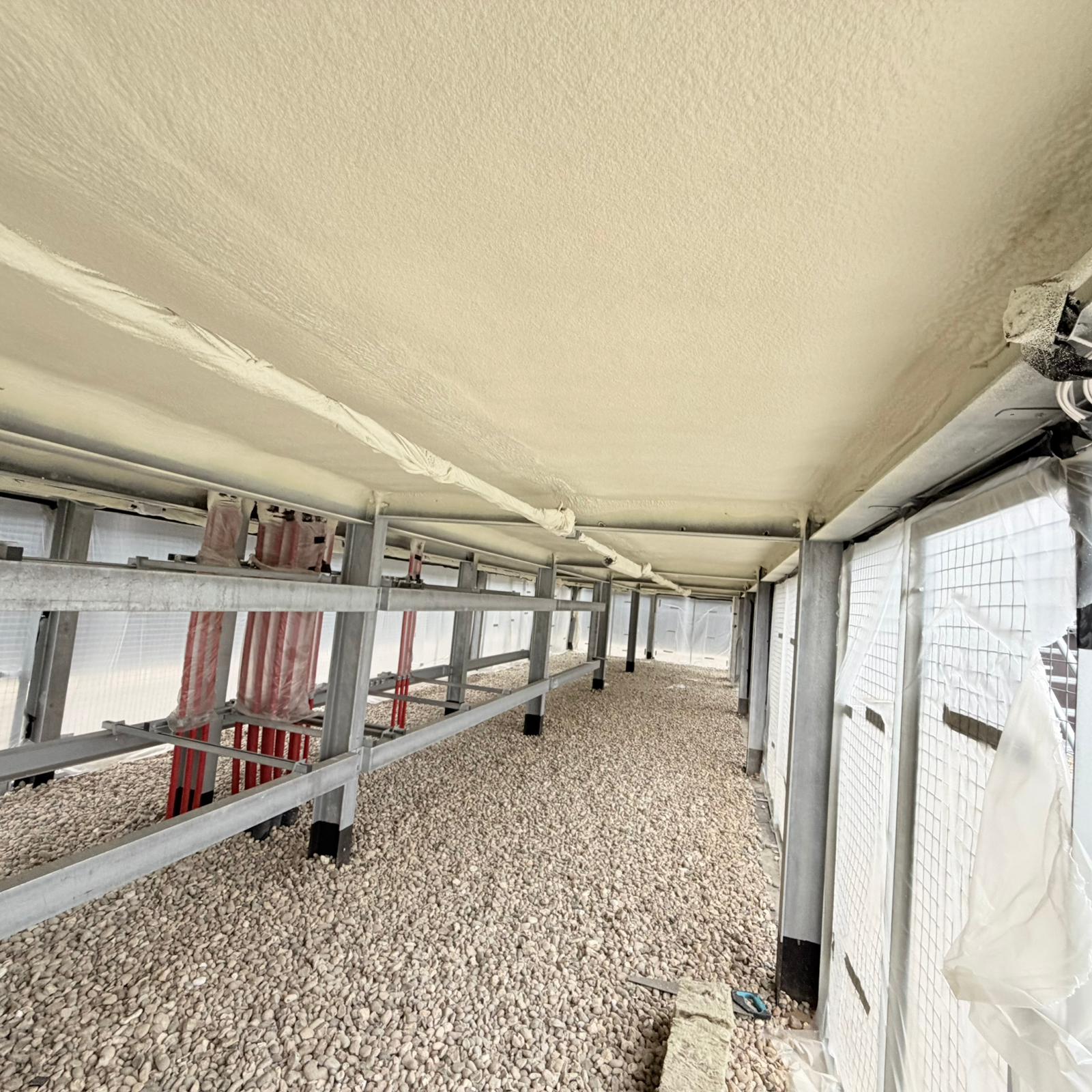

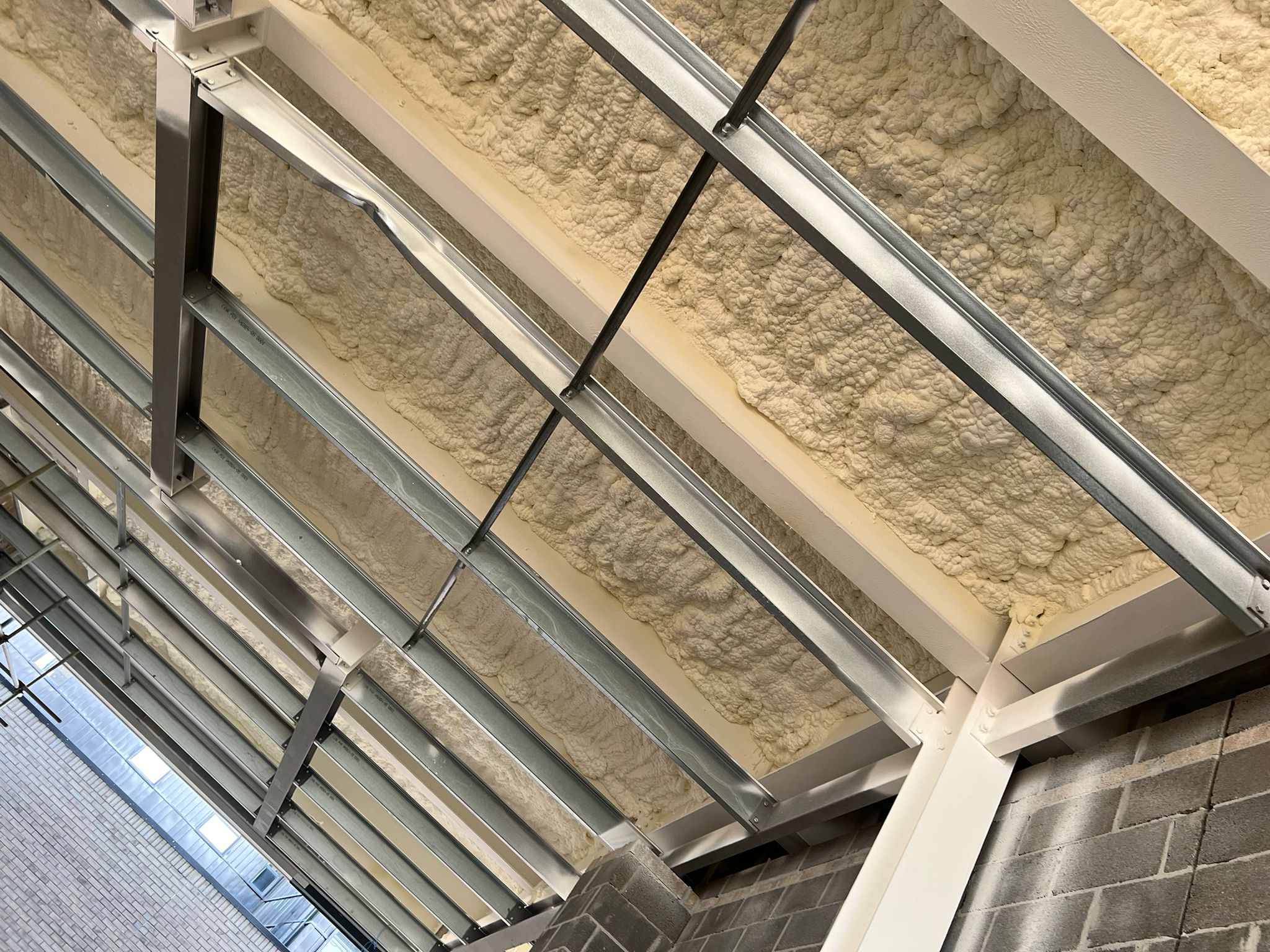

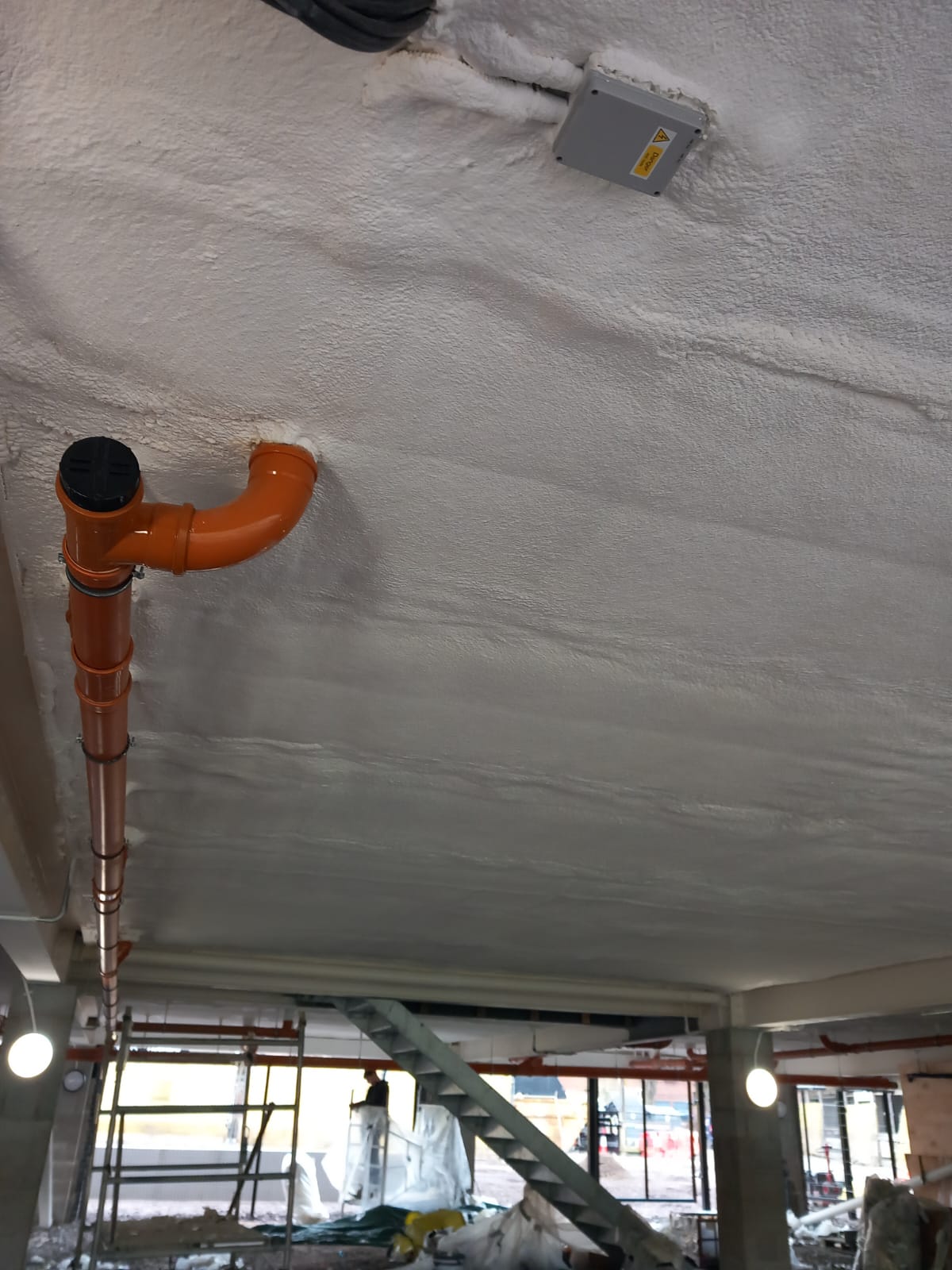

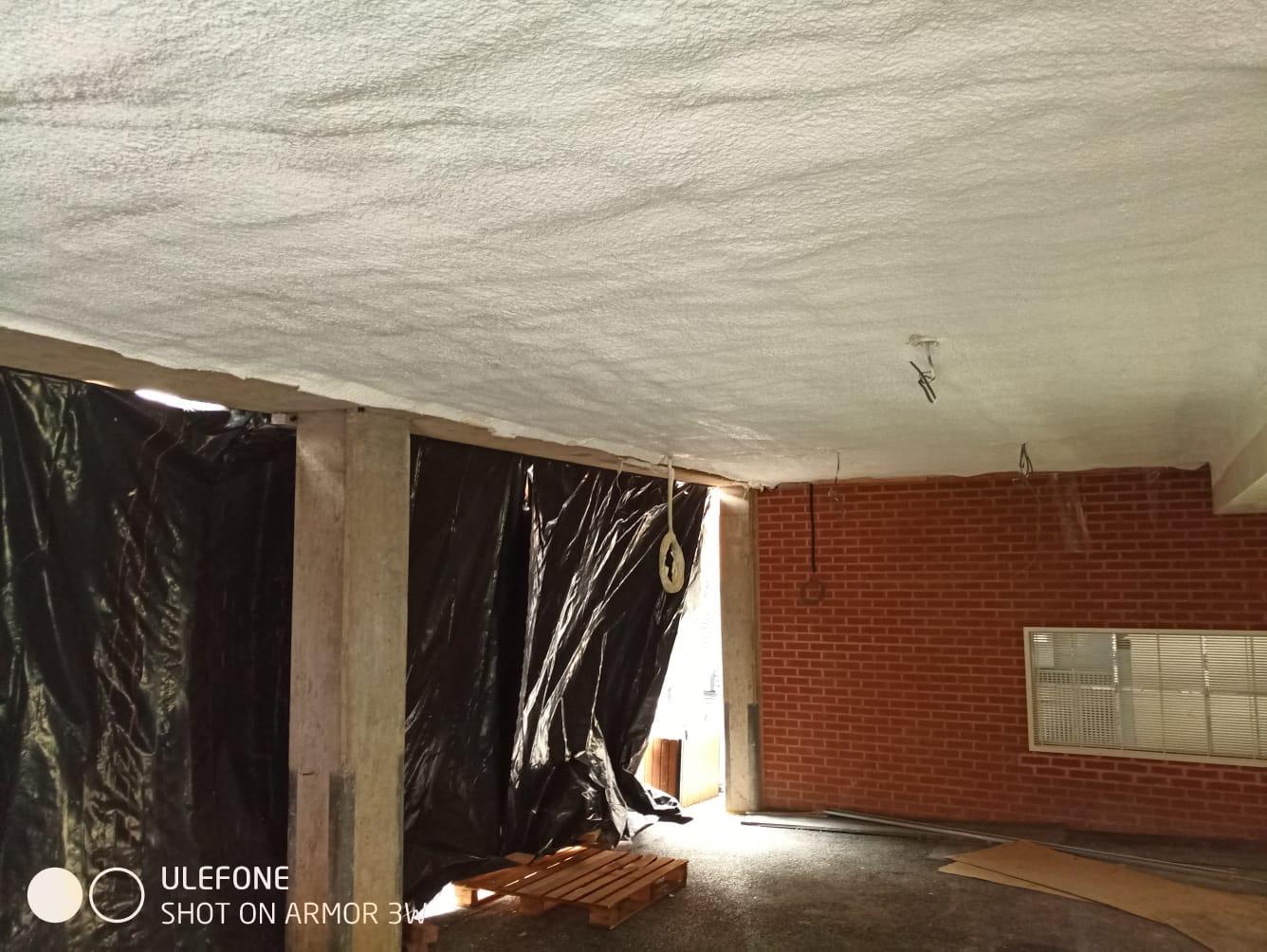

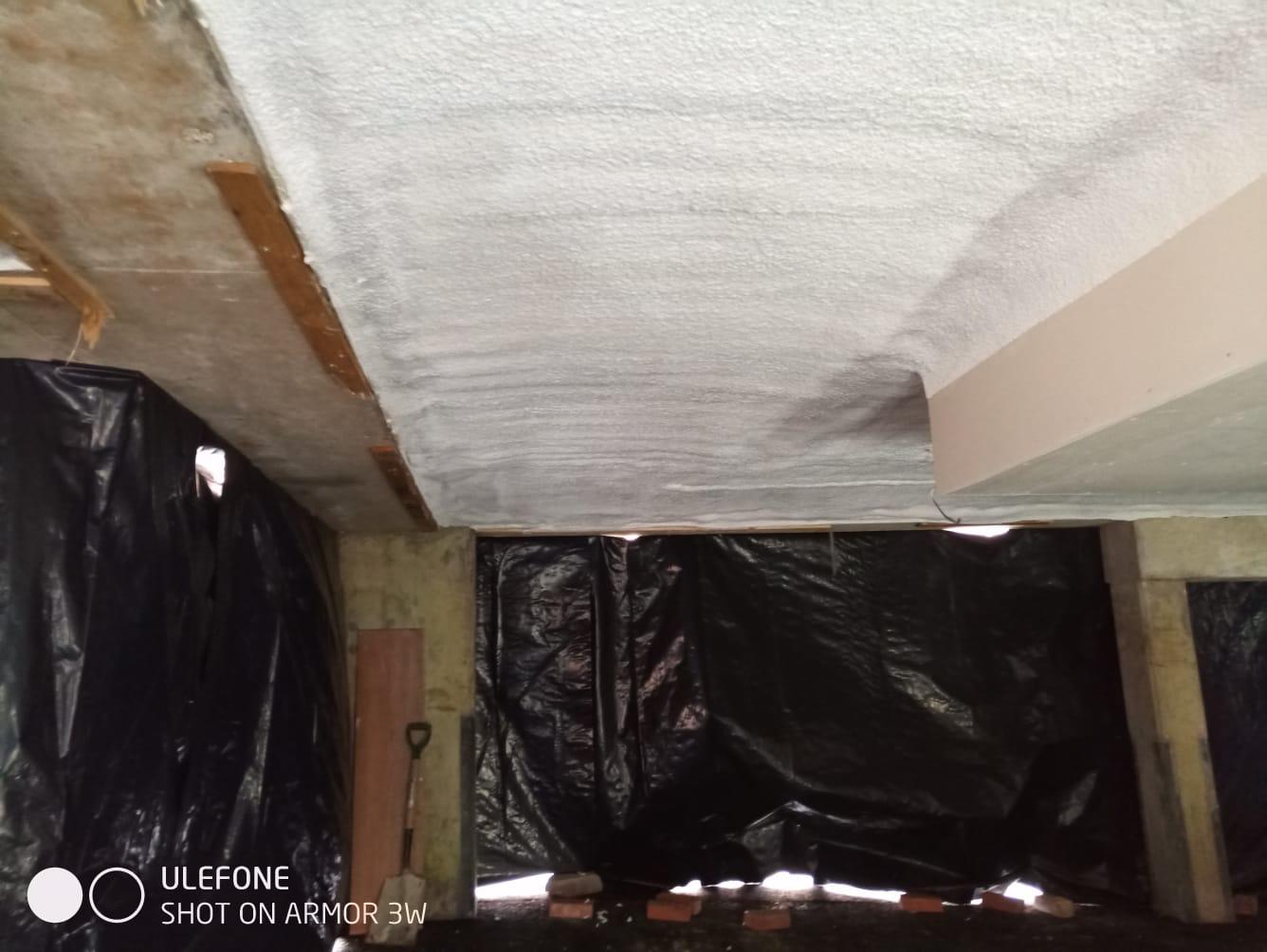

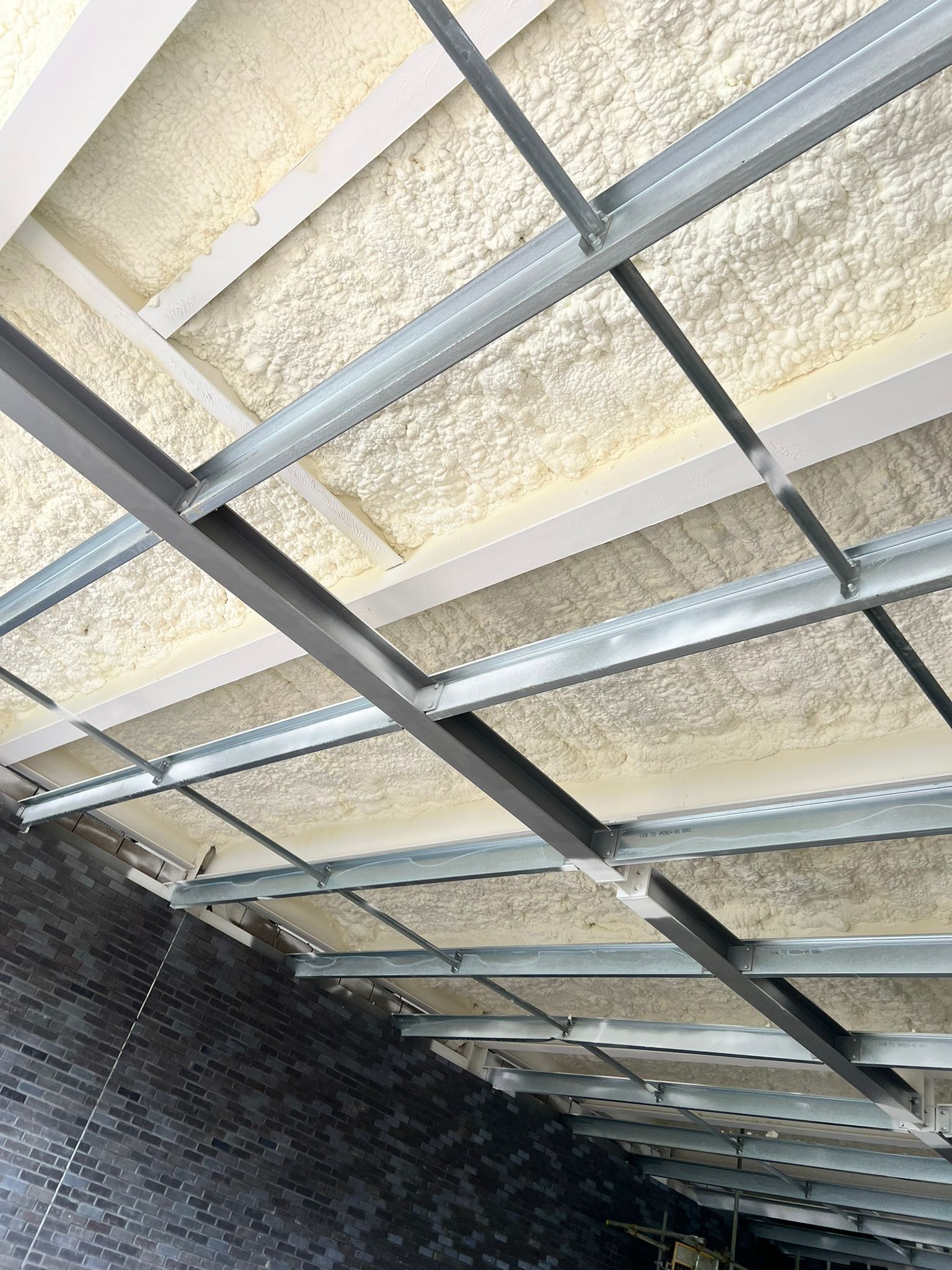

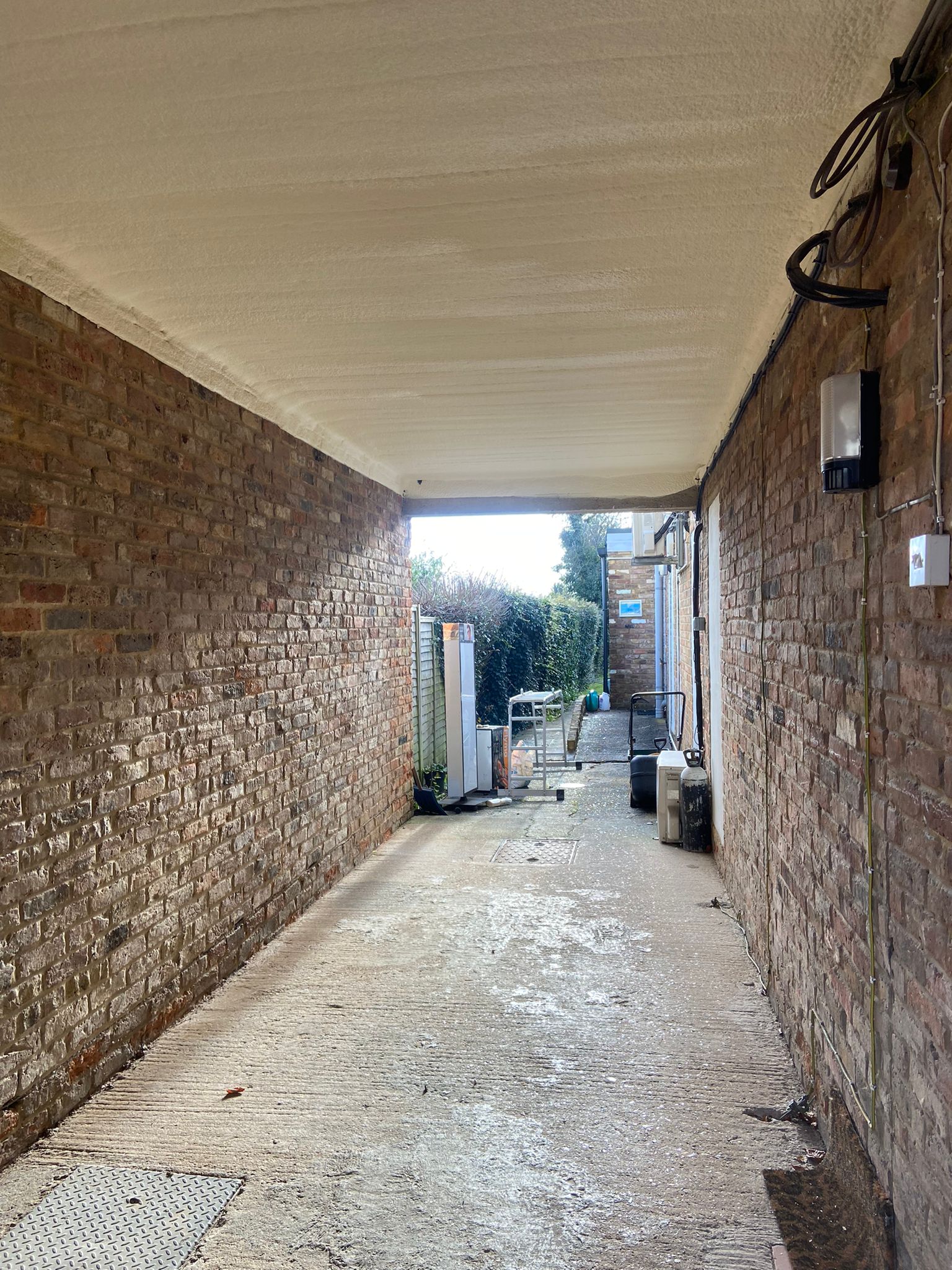

Real Commercial Soffit Installs — Photo Gallery
Every photo is a Duratite-installed commercial soffit. Closed-cell foam direct to the slab, finished with DC315 intumescent topcoat.
Commercial · completed
DC315 · finish
Euroclass B · spec
Concrete · completed

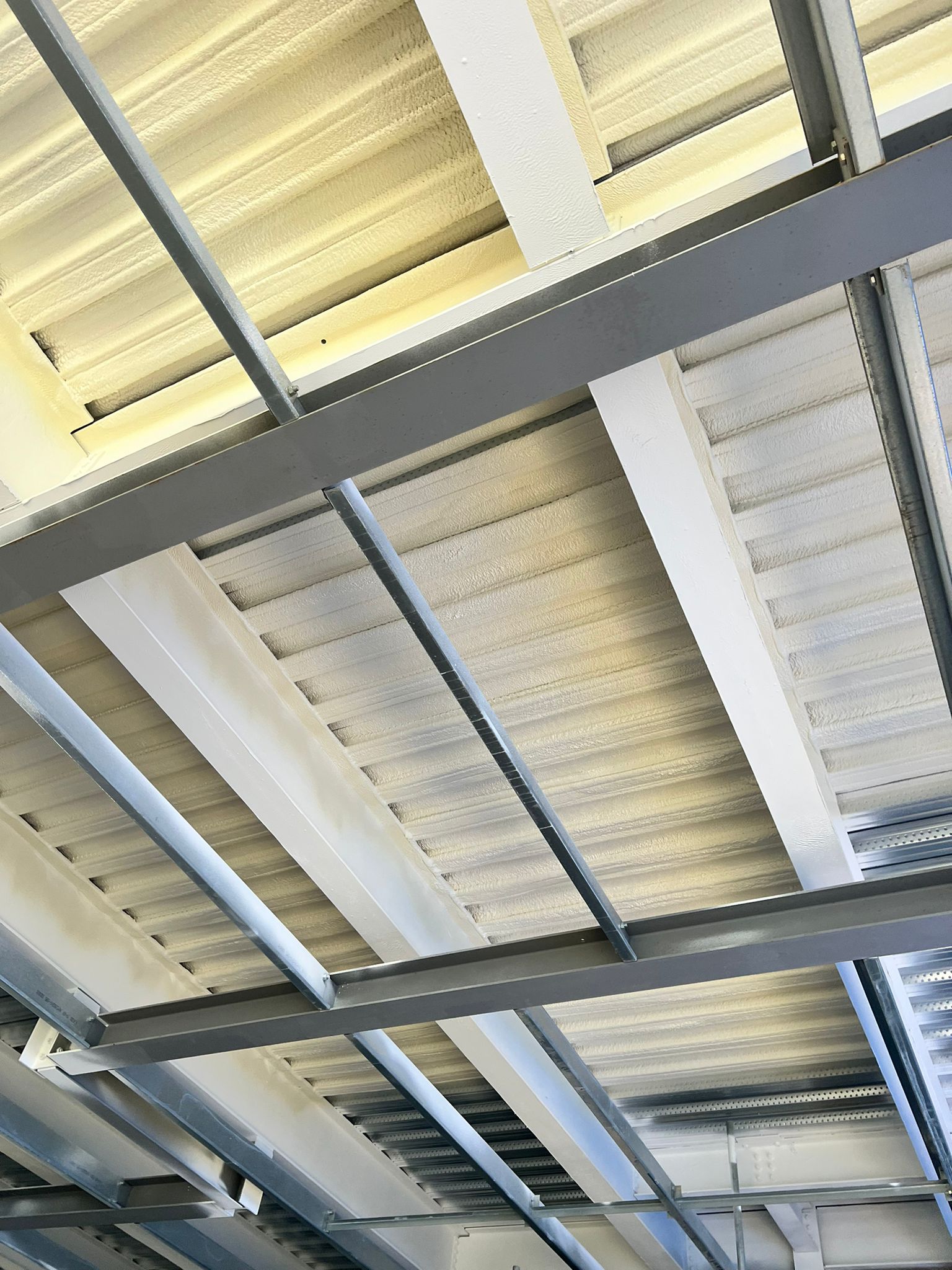

Hospital · Euroclass B

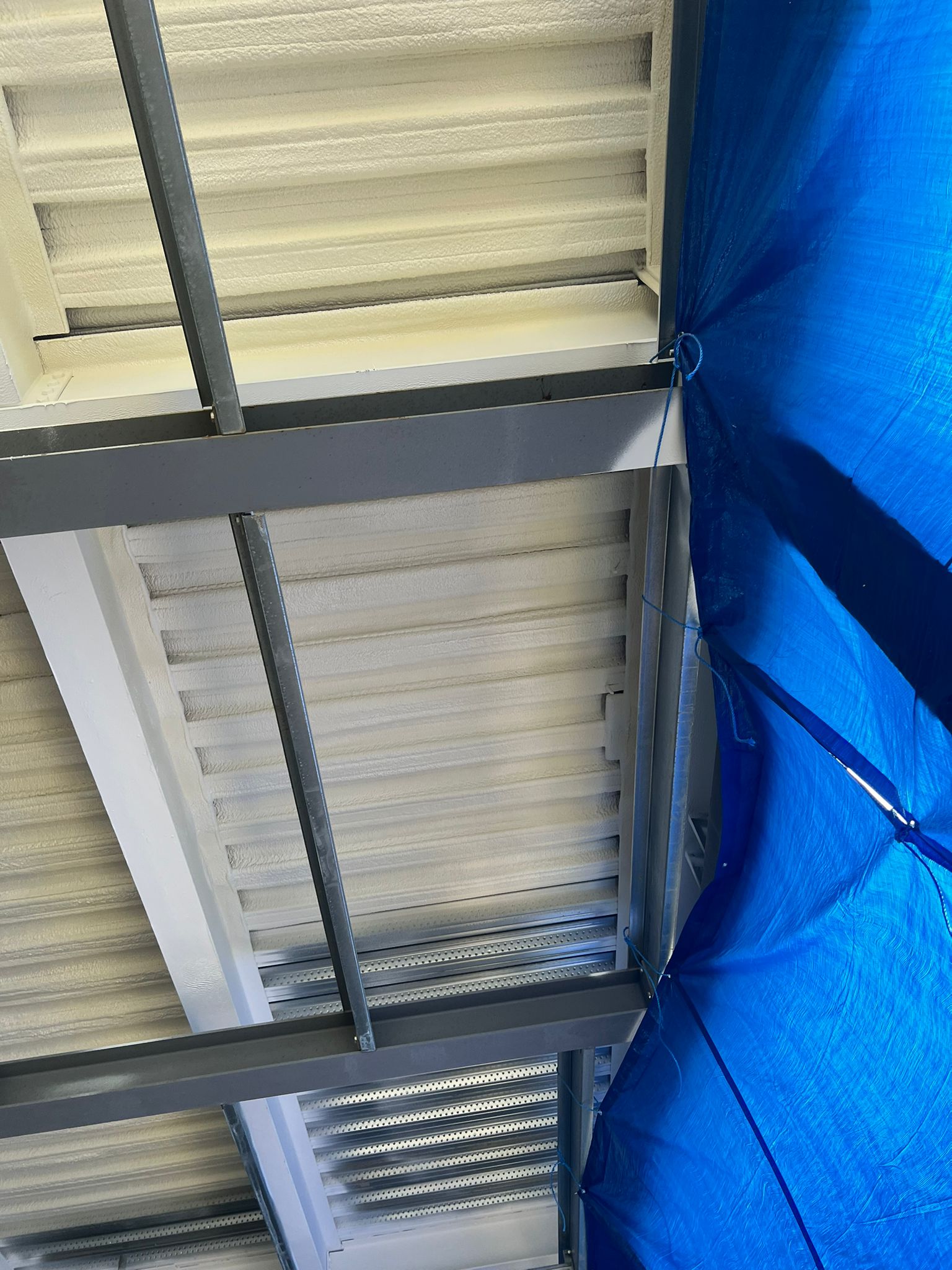

School · DC315
Office · retrofit
Nexseal LE · appliedTGD L. TGD B. One application.
Specifier-grade soffit insulation for commercial occupied buildings — sprayed in days, certified at handover.
From Survey to Spec Pack
Commercial soffit installs need a paper trail. Here's how we deliver a typical 2,000-5,000 m² office, hospital ward or retail scheme.
Free Site Survey
Senior surveyor measures the soffit area, checks substrate, existing U-value baseline, fire spec, services congestion and access constraints.
5 working daysSpec Pack & Quote
Bespoke spec to your target U-value + Euroclass B. BS EN 14315-1 declaration, DC315 ETA, RAMS, chemical agents risk assessment, U-value calc, photo schedule.
5 working daysPhased Install
Phased zone-by-zone install around occupant hours. Out-of-hours, weekend or holiday-closure slots offered for schools and hospital sites.
2-6 weeksCert Handover
BS EN 14315-1 declaration, DC315 ETA, U-value cert, 20-year manufacturer-backed warranty registration, photo dossier, FM walk-through.
1 dayWorks on Every Commercial Substrate
Concrete soffit · finishedConcrete, steel deck, composite — same system
Closed-cell foam bonds chemically to every common commercial substrate. No primer for concrete, steel or galvanised deck. Sprays around columns, downstand beams, sprinkler runs, lighting tracks and HVAC services without preparation.
- Reinforced concrete soffit (pre-cast & in-situ)
- Steel composite deck on primary beams
- Hybrid concrete-on-metal-deck slabs
- Metsec light-steel framing systems
- Pre-cast hollowcore floor plank
- Asbestos cement (over-encapsulation spec)
Indicative Commercial Soffit Pricing
Every commercial scheme is bespoke — final pricing depends on substrate, access constraints, fire rating and thickness for your U-value target. Indicative bands for a standard 50 mm closed-cell build-up with DC315 intumescent topcoat.
| Commercial scheme | Typical area | Indicative supply & install | Lead time |
|---|---|---|---|
| Boutique commercial / retail unit | 200-1,000 m² | Priced after survey | 1-2 weeks |
| Office / school / hospital ward | 1,000-3,000 m² | Priced after survey | 2-4 weeks |
| Hospital / shopping centre / major office | 3,000-8,000 m² | Priced after survey | 4-6 weeks |
| Major scheme (campus / multi-building) | 8,000+ m² | By tender | 6-12 weeks |
Every fixed quote includes MEWP/scaffolding allowance, RAMS, chemical agents risk assessment, Nexseal LE foam, DC315 intumescent topcoat, U-value certificate and 25-year manufacturer-backed warranty registration.
Why Architects, Specifiers & FMs Pick Duratite
Declared performance to BS EN 14315-1
Enverge Nexseal LE thermal and physical performance is declared by the manufacturer to BS EN 14315-1 for spray polyurethane foam to the underside of suspended floors and commercial soffits.
Euroclass B-s2-d0 fire performance
DC315 intumescent topcoat over closed-cell foam achieves Euroclass B-s2-d0 to BS EN 13501-1 — TGD B compliant.
Public-sector procurement
Standard local authority and public-sector procurement documentation — full pre-quals and public liability cover.
U-value cert at handover
Independent U-value calc included with every spec pack — backed by the DC315 ETA and the BS EN 14315-1 declared performance data.
Occupied-space install
Phased works during tenant operating hours, out-of-hours or holiday closures — agreed at mobilisation.
20-year manufacturer warranty
Manufacturer-backed product warranty on the closed-cell foam system. Registered with Enverge on completion.
Recent Commercial Soffit Work
Four recent install types across the commercial sector — office, hospital, school and retail.
Commercial office spec
Multi-tenant office building soffit upgrade. Target U-value 0.22 W/m²K + Euroclass B-s2-d0 + full spec pack delivered.
Get a quote →
Hospital ward
Phased ward-by-ward soffit upgrade with strict infection-control RAMS. Full BS EN 14315-1 declaration + DC315 cert pack at handover.
Get a quote →
Secondary school
Summer-holiday phased install to a secondary school plant-room and corridor soffits. Handover before term-start.
Get a quote →
Shopping centre fit-out
Retail unit ceiling soffit upgrade between tenant move-out and move-in. Fast-turn programme + TGD B compliant finish.
Get a quote →
